CMT 7/8/937 holprofielfrezen met kogellager

Productinformatie

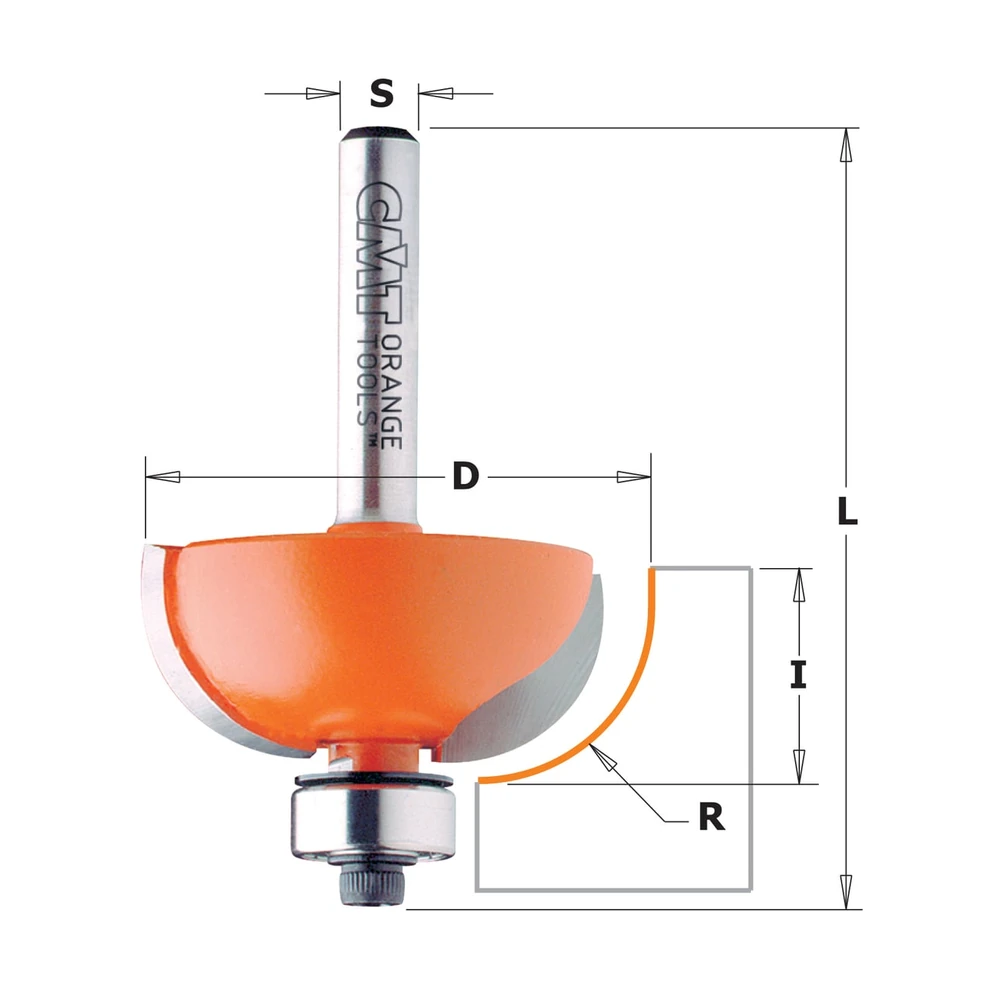

Holprofielfrezen, ook bekend als kwartbolfrezen, met kogellager en 2 HW-snijkanten voor afgeronde decoratieve profielen in hout en houtderivaten. Voor meubels, deuren, ladefronten en panelen. Diameteropties: 22,23, 25,4, 28,58, 31,75, 38,1, 44,45 of 50,8 mm; werklengtes: 12,7, 15,5, 18,5 of 22,2 mm; radii: 4,8, 6,4, 8, 9,5, 12,7, 15,9, 18,5 of 34,9 mm; totale lengtes: 54,2, 54,9, 57,7, 60,5, 61,2, 64, 67 of 70,7 mm. Schachten: 6, 6,35, 8, 12 of 12,7 mm; draairichting: RH (rechtsdraaiend); verpakking: 1 stuk.

CMT Orange Tools

35,78 €

excl. btw

Uitvoering (CMT)

Specificaties

Artikelnummer	EAN	Verpakking	D (diameter) in mm	Werklengte in mm	R (radius) in mm	L (totale lengte) in mm	Schachtuitvoering	Z (aantal tanden / snijkanten)	Draairichting	Snijmateriaal
737.190.11	8019296002102	1	22.23	12.7	4.8	54.9	6	2	RH (Rechtsdraaiend)	HW
737.222.11	8019296002119	1	25.4	12.7	6.4	54.9	6	2	RH (Rechtsdraaiend)	HW
737.254.11	8019296002126	1	28.58	12.7	8	54.2	6	2	RH (Rechtsdraaiend)	HW
737.286.11	8019296002133	1	31.75	12.7	9.5	54.2	6	2	RH (Rechtsdraaiend)	HW
737.350.11	8019296002140	1	38.1	15.5	12.7	57.7	6	2	RH (Rechtsdraaiend)	HW
837.190.11	664252004126	1	22.23	12.7	4.8	54.9	6.35	2	RH (Rechtsdraaiend)	HW
837.222.11	664252004133	1	25.4	12.7	6.4	54.9	6.35	2	RH (Rechtsdraaiend)	HW
837.254.11	664252004140	1	28.58	12.7	8	54.2	6.35	2	RH (Rechtsdraaiend)	HW
837.286.11	664252004157	1	31.75	12.7	9.5	54.2	6.35	2	RH (Rechtsdraaiend)	HW
837.350.11	664252004164	1	38.1	15.5	12.7	57.7	6.35	2	RH (Rechtsdraaiend)	HW
837.786.11	664252004218	1	31.75	12.7	9.5	60.5	12.7	2	RH (Rechtsdraaiend)	HW
837.850.11	664252004225	1	38.1	15.5	12.7	64	12.7	2	RH (Rechtsdraaiend)	HW
837.950.11	664252004232	1	44.45	18.5	15.9	67	12.7	2	RH (Rechtsdraaiend)	HW
837.951.11	664252004249	1	50.8	22.2	18.5	70.7	12.7	2	RH (Rechtsdraaiend)	HW
837.955.11	664252004256	1	50.8	12.7	34.9	61.2	12.7	2	RH (Rechtsdraaiend)	HW
937.190.11	8019296002157	1	22.23	12.7	4.8	54.9	8	2	RH (Rechtsdraaiend)	HW
937.222.11	8019296002164	1	25.4	12.7	6.4	54.9	8	2	RH (Rechtsdraaiend)	HW
937.254.11	8019296002171	1	28.58	12.7	8	54.2	8	2	RH (Rechtsdraaiend)	HW
937.286.11	8019296002188	1	31.75	12.7	9.5	54.2	8	2	RH (Rechtsdraaiend)	HW
937.350.11	8019296002195	1	38.1	15.5	12.7	57.7	8	2	RH (Rechtsdraaiend)	HW
937.690.11	8019296002201	1	22.23	12.7	4.8	61.2	12	2	RH (Rechtsdraaiend)	HW
937.722.11	8019296002218	1	25.4	12.7	6.4	61.2	12	2	RH (Rechtsdraaiend)	HW
937.754.11	8019296002225	1	28.58	12.7	8	60.5	12	2	RH (Rechtsdraaiend)	HW
937.786.11	8019296002232	1	31.75	12.7	9.5	60.5	12	2	RH (Rechtsdraaiend)	HW
937.850.11	8019296002249	1	38.1	15.5	12.7	64	12	2	RH (Rechtsdraaiend)	HW
937.950.11	8019296002256	1	44.45	18.5	15.9	67	12	2	RH (Rechtsdraaiend)	HW
937.951.11	8019296002263	1	50.8	22.2	18.5	70.7	12	2	RH (Rechtsdraaiend)	HW
937.955.11	8019296005325	1	50.8	12.7	34.9	61.2	12	2	RH (Rechtsdraaiend)	HW

Référence	EAN	Emballage	D (diamètre) en mm	Longueur utile en mm	R (rayon) en mm	L (longueur totale) en mm	Type de queue	Z (nombre de dents / arêtes de coupe)	Sens de rotation	Matériau de coupe
737.190.11	8019296002102	1	22.23	12.7	4.8	54.9	6	2	RH (rotation à droite)	HW
737.222.11	8019296002119	1	25.4	12.7	6.4	54.9	6	2	RH (rotation à droite)	HW
737.254.11	8019296002126	1	28.58	12.7	8	54.2	6	2	RH (rotation à droite)	HW
737.286.11	8019296002133	1	31.75	12.7	9.5	54.2	6	2	RH (rotation à droite)	HW
737.350.11	8019296002140	1	38.1	15.5	12.7	57.7	6	2	RH (rotation à droite)	HW
837.190.11	664252004126	1	22.23	12.7	4.8	54.9	6.35	2	RH (rotation à droite)	HW
837.222.11	664252004133	1	25.4	12.7	6.4	54.9	6.35	2	RH (rotation à droite)	HW
837.254.11	664252004140	1	28.58	12.7	8	54.2	6.35	2	RH (rotation à droite)	HW
837.286.11	664252004157	1	31.75	12.7	9.5	54.2	6.35	2	RH (rotation à droite)	HW
837.350.11	664252004164	1	38.1	15.5	12.7	57.7	6.35	2	RH (rotation à droite)	HW
837.786.11	664252004218	1	31.75	12.7	9.5	60.5	12.7	2	RH (rotation à droite)	HW
837.850.11	664252004225	1	38.1	15.5	12.7	64	12.7	2	RH (rotation à droite)	HW
837.950.11	664252004232	1	44.45	18.5	15.9	67	12.7	2	RH (rotation à droite)	HW
837.951.11	664252004249	1	50.8	22.2	18.5	70.7	12.7	2	RH (rotation à droite)	HW
837.955.11	664252004256	1	50.8	12.7	34.9	61.2	12.7	2	RH (rotation à droite)	HW
937.190.11	8019296002157	1	22.23	12.7	4.8	54.9	8	2	RH (rotation à droite)	HW
937.222.11	8019296002164	1	25.4	12.7	6.4	54.9	8	2	RH (rotation à droite)	HW
937.254.11	8019296002171	1	28.58	12.7	8	54.2	8	2	RH (rotation à droite)	HW
937.286.11	8019296002188	1	31.75	12.7	9.5	54.2	8	2	RH (rotation à droite)	HW
937.350.11	8019296002195	1	38.1	15.5	12.7	57.7	8	2	RH (rotation à droite)	HW
937.690.11	8019296002201	1	22.23	12.7	4.8	61.2	12	2	RH (rotation à droite)	HW
937.722.11	8019296002218	1	25.4	12.7	6.4	61.2	12	2	RH (rotation à droite)	HW
937.754.11	8019296002225	1	28.58	12.7	8	60.5	12	2	RH (rotation à droite)	HW
937.786.11	8019296002232	1	31.75	12.7	9.5	60.5	12	2	RH (rotation à droite)	HW
937.850.11	8019296002249	1	38.1	15.5	12.7	64	12	2	RH (rotation à droite)	HW
937.950.11	8019296002256	1	44.45	18.5	15.9	67	12	2	RH (rotation à droite)	HW
937.951.11	8019296002263	1	50.8	22.2	18.5	70.7	12	2	RH (rotation à droite)	HW
937.955.11	8019296005325	1	50.8	12.7	34.9	61.2	12	2	RH (rotation à droite)	HW

Item number	EAN	Pack quantity	Diameter	Cutting length	Radius	Total length	Shank diameter	Number of cutting edges	Right-hand or left-hand rotation	Material
737.190.11	8019296002102	1	22.23	12.7	4.8	54.9	6	2	RH (right-hand rotation)	HW
737.222.11	8019296002119	1	25.4	12.7	6.4	54.9	6	2	RH (right-hand rotation)	HW
737.254.11	8019296002126	1	28.58	12.7	8	54.2	6	2	RH (right-hand rotation)	HW
737.286.11	8019296002133	1	31.75	12.7	9.5	54.2	6	2	RH (right-hand rotation)	HW
737.350.11	8019296002140	1	38.1	15.5	12.7	57.7	6	2	RH (right-hand rotation)	HW
837.190.11	664252004126	1	22.23	12.7	4.8	54.9	6.35	2	RH (right-hand rotation)	HW
837.222.11	664252004133	1	25.4	12.7	6.4	54.9	6.35	2	RH (right-hand rotation)	HW
837.254.11	664252004140	1	28.58	12.7	8	54.2	6.35	2	RH (right-hand rotation)	HW
837.286.11	664252004157	1	31.75	12.7	9.5	54.2	6.35	2	RH (right-hand rotation)	HW
837.350.11	664252004164	1	38.1	15.5	12.7	57.7	6.35	2	RH (right-hand rotation)	HW
837.786.11	664252004218	1	31.75	12.7	9.5	60.5	12.7	2	RH (right-hand rotation)	HW
837.850.11	664252004225	1	38.1	15.5	12.7	64	12.7	2	RH (right-hand rotation)	HW
837.950.11	664252004232	1	44.45	18.5	15.9	67	12.7	2	RH (right-hand rotation)	HW
837.951.11	664252004249	1	50.8	22.2	18.5	70.7	12.7	2	RH (right-hand rotation)	HW
837.955.11	664252004256	1	50.8	12.7	34.9	61.2	12.7	2	RH (right-hand rotation)	HW
937.190.11	8019296002157	1	22.23	12.7	4.8	54.9	8	2	RH (right-hand rotation)	HW
937.222.11	8019296002164	1	25.4	12.7	6.4	54.9	8	2	RH (right-hand rotation)	HW
937.254.11	8019296002171	1	28.58	12.7	8	54.2	8	2	RH (right-hand rotation)	HW
937.286.11	8019296002188	1	31.75	12.7	9.5	54.2	8	2	RH (right-hand rotation)	HW
937.350.11	8019296002195	1	38.1	15.5	12.7	57.7	8	2	RH (right-hand rotation)	HW
937.690.11	8019296002201	1	22.23	12.7	4.8	61.2	12	2	RH (right-hand rotation)	HW
937.722.11	8019296002218	1	25.4	12.7	6.4	61.2	12	2	RH (right-hand rotation)	HW
937.754.11	8019296002225	1	28.58	12.7	8	60.5	12	2	RH (right-hand rotation)	HW
937.786.11	8019296002232	1	31.75	12.7	9.5	60.5	12	2	RH (right-hand rotation)	HW
937.850.11	8019296002249	1	38.1	15.5	12.7	64	12	2	RH (right-hand rotation)	HW
937.950.11	8019296002256	1	44.45	18.5	15.9	67	12	2	RH (right-hand rotation)	HW
937.951.11	8019296002263	1	50.8	22.2	18.5	70.7	12	2	RH (right-hand rotation)	HW
937.955.11	8019296005325	1	50.8	12.7	34.9	61.2	12	2	RH (right-hand rotation)	HW

Artikelnummer	EAN	Packmenge	Durchmesser (mm)	Arbeitslänge (mm)	Radius (mm)	Gesamtlänge (mm)	Schaftausführung	Zähne / Schneiden	Drehrichtung	Schneidstoff
737.190.11	8019296002102	1	22.23	12.7	4.8	54.9	6	2	RH (Rechtslauf)	HW
737.222.11	8019296002119	1	25.4	12.7	6.4	54.9	6	2	RH (Rechtslauf)	HW
737.254.11	8019296002126	1	28.58	12.7	8	54.2	6	2	RH (Rechtslauf)	HW
737.286.11	8019296002133	1	31.75	12.7	9.5	54.2	6	2	RH (Rechtslauf)	HW
737.350.11	8019296002140	1	38.1	15.5	12.7	57.7	6	2	RH (Rechtslauf)	HW
837.190.11	664252004126	1	22.23	12.7	4.8	54.9	6.35	2	RH (Rechtslauf)	HW
837.222.11	664252004133	1	25.4	12.7	6.4	54.9	6.35	2	RH (Rechtslauf)	HW
837.254.11	664252004140	1	28.58	12.7	8	54.2	6.35	2	RH (Rechtslauf)	HW
837.286.11	664252004157	1	31.75	12.7	9.5	54.2	6.35	2	RH (Rechtslauf)	HW
837.350.11	664252004164	1	38.1	15.5	12.7	57.7	6.35	2	RH (Rechtslauf)	HW
837.786.11	664252004218	1	31.75	12.7	9.5	60.5	12.7	2	RH (Rechtslauf)	HW
837.850.11	664252004225	1	38.1	15.5	12.7	64	12.7	2	RH (Rechtslauf)	HW
837.950.11	664252004232	1	44.45	18.5	15.9	67	12.7	2	RH (Rechtslauf)	HW
837.951.11	664252004249	1	50.8	22.2	18.5	70.7	12.7	2	RH (Rechtslauf)	HW
837.955.11	664252004256	1	50.8	12.7	34.9	61.2	12.7	2	RH (Rechtslauf)	HW
937.190.11	8019296002157	1	22.23	12.7	4.8	54.9	8	2	RH (Rechtslauf)	HW
937.222.11	8019296002164	1	25.4	12.7	6.4	54.9	8	2	RH (Rechtslauf)	HW
937.254.11	8019296002171	1	28.58	12.7	8	54.2	8	2	RH (Rechtslauf)	HW
937.286.11	8019296002188	1	31.75	12.7	9.5	54.2	8	2	RH (Rechtslauf)	HW
937.350.11	8019296002195	1	38.1	15.5	12.7	57.7	8	2	RH (Rechtslauf)	HW
937.690.11	8019296002201	1	22.23	12.7	4.8	61.2	12	2	RH (Rechtslauf)	HW
937.722.11	8019296002218	1	25.4	12.7	6.4	61.2	12	2	RH (Rechtslauf)	HW
937.754.11	8019296002225	1	28.58	12.7	8	60.5	12	2	RH (Rechtslauf)	HW
937.786.11	8019296002232	1	31.75	12.7	9.5	60.5	12	2	RH (Rechtslauf)	HW
937.850.11	8019296002249	1	38.1	15.5	12.7	64	12	2	RH (Rechtslauf)	HW
937.950.11	8019296002256	1	44.45	18.5	15.9	67	12	2	RH (Rechtslauf)	HW
937.951.11	8019296002263	1	50.8	22.2	18.5	70.7	12	2	RH (Rechtslauf)	HW
937.955.11	8019296005325	1	50.8	12.7	34.9	61.2	12	2	RH (Rechtslauf)	HW

Compatibele opties

CMT 791 kogellagers CMT 990.42 afschermringen voor lagers CMT Orange Tools 799 vergrootbussen voor freesschachten CMT Orange Tools 990 vervangschroeven en -bouten CMT Orange Tools 991 inbussleutels

Beschikbaarheid en levertijd op aanvraag

Levering in België: EUR 8 excl. btw; gratis vanaf EUR 175 aan artikelen incl. btw. Andere bestemmingen bekijken

Stel een vraag over dit product

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden

Specificaties

Uitvoering (CMT)	D 22,2 \| d 22.2 \| I 12,7 \| R 4,75 \| L 55 \| S 6 \| Art. 737.190.11, D 25,4 \| d 25.4 \| I 12,7 \| R 6,35 \| L 55 \| S 6 \| Art. 737.222.11, D 28,7 \| d 28.7 \| I 12,7 \| R 8 \| L 54 \| S 6 \| Art. 737.254.11, D 31,7 \| d 31.7 \| I 12,7 \| R 9,5 \| L 54 \| S 6 \| Art. 737.286.11, D 38,1 \| d 38.1 \| I 15,5 \| R 12,7 \| L 58 \| S 6 \| Art. 737.350.11, D 22,2 \| d 22.2 \| I 12,7 \| R 4,75 \| L 55 \| S 1/4 \| Art. 837.190.11, D 25,4 \| d 25.4 \| I 12,7 \| R 6,35 \| L 55 \| S 1/4 \| Art. 837.222.11, D 28,7 \| d 28.7 \| I 12,7 \| R 8 \| L 54 \| S 1/4 \| Art. 837.254.11, D 31,7 \| d 31.7 \| I 12,7 \| R 9,5 \| L 54 \| S 1/4 \| Art. 837.286.11, D 38,1 \| d 38.1 \| I 15,5 \| R 12,7 \| L 58 \| S 1/4 \| Art. 837.350.11, D 31,7 \| d 31.7 \| I 12,7 \| R 9,5 \| L 60,5 \| S 1/2 \| Art. 837.786.11, D 38,1 \| d 38.1 \| I 15,5 \| R 12,7 \| L 64 \| S 1/2 \| Art. 837.850.11, D 44,5 \| d 44.5 \| I 18,5 \| R 16 \| L 67 \| S 1/2 \| Art. 837.950.11, D 50,8 \| d 50.8 \| I 22,2 \| R 19 \| L 71 \| S 1/2 \| Art. 837.951.11, D 50,8 \| d 50.8 \| I 12,7 \| L 61 \| S 1/2 \| Art. 837.955.11, D 22,2 \| d 22.2 \| I 12,7 \| R 4,75 \| L 55 \| S 8 \| Art. 937.190.11, D 25,4 \| d 25.4 \| I 12,7 \| R 6,35 \| L 55 \| S 8 \| Art. 937.222.11, D 28,7 \| d 28.7 \| I 12,7 \| R 8 \| L 54 \| S 8 \| Art. 937.254.11, D 31,7 \| d 31.7 \| I 12,7 \| R 9,5 \| L 54 \| S 8 \| Art. 937.286.11, D 38,1 \| d 38.1 \| I 15,5 \| R 12,7 \| L 58 \| S 8 \| Art. 937.350.11, D 22,2 \| d 22.2 \| I 12,7 \| R 4,75 \| L 61 \| S 12 \| Art. 937.690.11, D 25,4 \| d 25.4 \| I 12,7 \| R 6,35 \| L 61 \| S 12 \| Art. 937.722.11, D 28,7 \| d 28.7 \| I 12,7 \| R 8 \| L 60,5 \| S 12 \| Art. 937.754.11, D 31,7 \| d 31.7 \| I 12,7 \| R 9,5 \| L 60,5 \| S 12 \| Art. 937.786.11, D 38,1 \| d 38.1 \| I 15,5 \| R 12,7 \| L 64 \| S 12 \| Art. 937.850.11, D 44,5 \| d 44.5 \| I 18,5 \| R 16 \| L 67 \| S 12 \| Art. 937.950.11, D 50,8 \| d 50.8 \| I 12,7 \| L 61 \| S 12 \| Art. 937.955.11, D 50,8 \| d 50.8 \| I 22,2 \| R 19 \| L 71 \| S 12 \| Art. 937.951.11
D (diameter) in mm (CMT)	22.23, 25.4, 28.58, 31.75, 38.1, 44.45, 50.8
R (radius) in mm (CMT)	12.7, 15.9, 18.5, 34.9, 4.8, 6.4, 8, 9.5
Schachtuitvoering (CMT)	12, 12.7, 6, 6.35, 8
L (totale lengte) in mm (CMT)	54.2, 54.9, 57.7, 60.5, 61.2, 64, 67, 70.7
Werklengte in mm (CMT)	12.7, 15.5, 18.5, 22.2
Merk	CMT Orange Tools
Draairichting (CMT)	RH (Rechtsdraaiend)
Z (aantal tanden / snijkanten) (CMT)	2
Snijmateriaal (CMT)	HW
