CMT 7/8/927 holle-radiusfrezen

Productinformatie

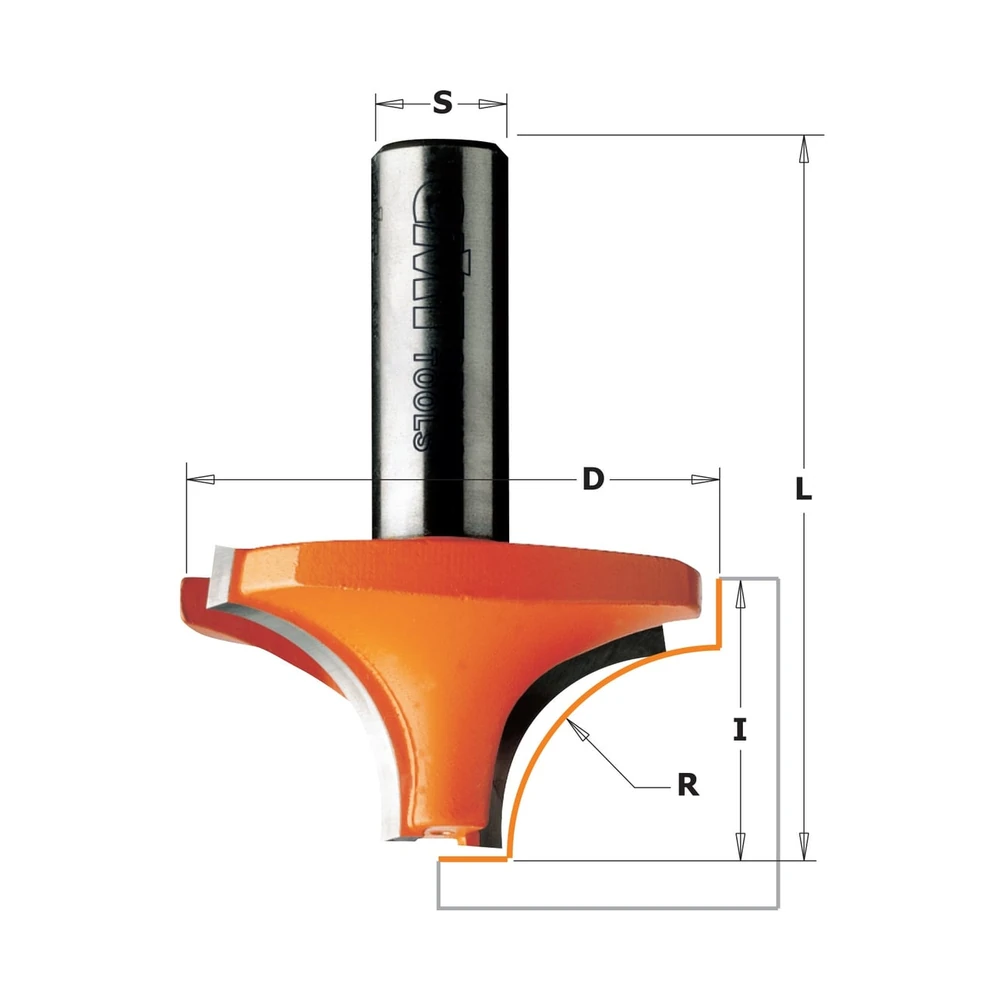

CMT 7/8/927 holle-radiusfrezen. Z (aantal tanden / snijkanten): 2; Draairichting: RH (Rechtsdraaiend). Kies de uitvoering op basis van d (diameter), werklengte, r (radius) en l (totale lengte) in de productspecificaties. Verpakking: 1 stuk.

CMT Orange Tools

33,10 €

excl. btw

Uitvoering (CMT)

Specificaties

Artikelnummer	EAN	Verpakking	D (diameter) in mm	Werklengte in mm	R (radius) in mm	L (totale lengte) in mm	Schachtuitvoering	Z (aantal tanden / snijkanten)	Draairichting	Snijmateriaal
727.040.11	8019296002737	1	19	12	4	43.8	6	2	RH (Rechtsdraaiend)	HW
727.050.11	8019296002744	1	21	12	5	43.8	6	2	RH (Rechtsdraaiend)	HW
727.060.11	8019296002751	1	23	12	6	43.8	6	2	RH (Rechtsdraaiend)	HW
727.080.11	8019296002768	1	28.58	12.7	8	44.5	6	2	RH (Rechtsdraaiend)	HW
727.095.11	8019296002775	1	31.75	15.9	9.5	47.6	6	2	RH (Rechtsdraaiend)	HW
827.050.11	664252003853	1	21	12	5	43.8	6.35	2	RH (Rechtsdraaiend)	HW
827.060.11	664252003860	1	23	12	6	43.8	6.35	2	RH (Rechtsdraaiend)	HW
827.095.11	664252003877	1	31.75	15.9	9.5	47.6	6.35	2	RH (Rechtsdraaiend)	HW
827.127.11	664252003884	1	38.1	19	12.7	50.8	6.35	2	RH (Rechtsdraaiend)	HW
827.560.11	664252003891	1	23	12	6	50.1	12.7	2	RH (Rechtsdraaiend)	HW
827.595.11	664252003907	1	31.75	15.9	9.5	54	12.7	2	RH (Rechtsdraaiend)	HW
827.627.11	664252003914	1	38.1	19	12.7	57.1	12.7	2	RH (Rechtsdraaiend)	HW
827.660.11	664252003921	1	44.45	22.2	15.9	60.3	12.7	2	RH (Rechtsdraaiend)	HW
827.690.11	664252003938	1	50.8	25.4	19.1	63.5	12.7	2	RH (Rechtsdraaiend)	HW
827.722.11	664252003945	1	57.15	28.5	22.2	66.6	12.7	2	RH (Rechtsdraaiend)	HW
827.754.11	664252003952	1	63.5	33.3	25.4	71.4	12.7	2	RH (Rechtsdraaiend)	HW
927.040.11	8019296002782	1	19	12	4	43.8	8	2	RH (Rechtsdraaiend)	HW
927.050.11	8019296002799	1	21	12	5	43.8	8	2	RH (Rechtsdraaiend)	HW
927.060.11	8019296002805	1	23	12	6	43.8	8	2	RH (Rechtsdraaiend)	HW
927.080.11	8019296002812	1	28.58	12.7	8	44.5	8	2	RH (Rechtsdraaiend)	HW
927.095.11	8019296002829	1	31.75	15.9	9.5	47.6	8	2	RH (Rechtsdraaiend)	HW
927.595.11	8019296002836	1	31.75	15.9	9.5	54	12	2	RH (Rechtsdraaiend)	HW
927.627.11	8019296002843	1	38.1	19	12.7	57.1	12	2	RH (Rechtsdraaiend)	HW
927.660.11	8019296002850	1	44.45	22.2	15.9	60.3	12	2	RH (Rechtsdraaiend)	HW
927.690.11	8019296002867	1	50.8	25.4	19.1	63.5	12	2	RH (Rechtsdraaiend)	HW
927.722.11	8019296002874	1	57.15	28.5	22.2	66.6	12	2	RH (Rechtsdraaiend)	HW
927.754.11	8019296002881	1	63.5	33.3	25.4	71.4	12	2	RH (Rechtsdraaiend)	HW

Référence	EAN	Emballage	D (diamètre) en mm	Longueur utile en mm	R (rayon) en mm	L (longueur totale) en mm	Type de queue	Z (nombre de dents / arêtes de coupe)	Sens de rotation	Matériau de coupe
727.040.11	8019296002737	1	19	12	4	43.8	6	2	RH (rotation à droite)	HW
727.050.11	8019296002744	1	21	12	5	43.8	6	2	RH (rotation à droite)	HW
727.060.11	8019296002751	1	23	12	6	43.8	6	2	RH (rotation à droite)	HW
727.080.11	8019296002768	1	28.58	12.7	8	44.5	6	2	RH (rotation à droite)	HW
727.095.11	8019296002775	1	31.75	15.9	9.5	47.6	6	2	RH (rotation à droite)	HW
827.050.11	664252003853	1	21	12	5	43.8	6.35	2	RH (rotation à droite)	HW
827.060.11	664252003860	1	23	12	6	43.8	6.35	2	RH (rotation à droite)	HW
827.095.11	664252003877	1	31.75	15.9	9.5	47.6	6.35	2	RH (rotation à droite)	HW
827.127.11	664252003884	1	38.1	19	12.7	50.8	6.35	2	RH (rotation à droite)	HW
827.560.11	664252003891	1	23	12	6	50.1	12.7	2	RH (rotation à droite)	HW
827.595.11	664252003907	1	31.75	15.9	9.5	54	12.7	2	RH (rotation à droite)	HW
827.627.11	664252003914	1	38.1	19	12.7	57.1	12.7	2	RH (rotation à droite)	HW
827.660.11	664252003921	1	44.45	22.2	15.9	60.3	12.7	2	RH (rotation à droite)	HW
827.690.11	664252003938	1	50.8	25.4	19.1	63.5	12.7	2	RH (rotation à droite)	HW
827.722.11	664252003945	1	57.15	28.5	22.2	66.6	12.7	2	RH (rotation à droite)	HW
827.754.11	664252003952	1	63.5	33.3	25.4	71.4	12.7	2	RH (rotation à droite)	HW
927.040.11	8019296002782	1	19	12	4	43.8	8	2	RH (rotation à droite)	HW
927.050.11	8019296002799	1	21	12	5	43.8	8	2	RH (rotation à droite)	HW
927.060.11	8019296002805	1	23	12	6	43.8	8	2	RH (rotation à droite)	HW
927.080.11	8019296002812	1	28.58	12.7	8	44.5	8	2	RH (rotation à droite)	HW
927.095.11	8019296002829	1	31.75	15.9	9.5	47.6	8	2	RH (rotation à droite)	HW
927.595.11	8019296002836	1	31.75	15.9	9.5	54	12	2	RH (rotation à droite)	HW
927.627.11	8019296002843	1	38.1	19	12.7	57.1	12	2	RH (rotation à droite)	HW
927.660.11	8019296002850	1	44.45	22.2	15.9	60.3	12	2	RH (rotation à droite)	HW
927.690.11	8019296002867	1	50.8	25.4	19.1	63.5	12	2	RH (rotation à droite)	HW
927.722.11	8019296002874	1	57.15	28.5	22.2	66.6	12	2	RH (rotation à droite)	HW
927.754.11	8019296002881	1	63.5	33.3	25.4	71.4	12	2	RH (rotation à droite)	HW

Item number	EAN	Pack quantity	Diameter	Cutting length	Radius	Total length	Shank diameter	Number of cutting edges	Right-hand or left-hand rotation	Material
727.040.11	8019296002737	1	19	12	4	43.8	6	2	RH (right-hand rotation)	HW
727.050.11	8019296002744	1	21	12	5	43.8	6	2	RH (right-hand rotation)	HW
727.060.11	8019296002751	1	23	12	6	43.8	6	2	RH (right-hand rotation)	HW
727.080.11	8019296002768	1	28.58	12.7	8	44.5	6	2	RH (right-hand rotation)	HW
727.095.11	8019296002775	1	31.75	15.9	9.5	47.6	6	2	RH (right-hand rotation)	HW
827.050.11	664252003853	1	21	12	5	43.8	6.35	2	RH (right-hand rotation)	HW
827.060.11	664252003860	1	23	12	6	43.8	6.35	2	RH (right-hand rotation)	HW
827.095.11	664252003877	1	31.75	15.9	9.5	47.6	6.35	2	RH (right-hand rotation)	HW
827.127.11	664252003884	1	38.1	19	12.7	50.8	6.35	2	RH (right-hand rotation)	HW
827.560.11	664252003891	1	23	12	6	50.1	12.7	2	RH (right-hand rotation)	HW
827.595.11	664252003907	1	31.75	15.9	9.5	54	12.7	2	RH (right-hand rotation)	HW
827.627.11	664252003914	1	38.1	19	12.7	57.1	12.7	2	RH (right-hand rotation)	HW
827.660.11	664252003921	1	44.45	22.2	15.9	60.3	12.7	2	RH (right-hand rotation)	HW
827.690.11	664252003938	1	50.8	25.4	19.1	63.5	12.7	2	RH (right-hand rotation)	HW
827.722.11	664252003945	1	57.15	28.5	22.2	66.6	12.7	2	RH (right-hand rotation)	HW
827.754.11	664252003952	1	63.5	33.3	25.4	71.4	12.7	2	RH (right-hand rotation)	HW
927.040.11	8019296002782	1	19	12	4	43.8	8	2	RH (right-hand rotation)	HW
927.050.11	8019296002799	1	21	12	5	43.8	8	2	RH (right-hand rotation)	HW
927.060.11	8019296002805	1	23	12	6	43.8	8	2	RH (right-hand rotation)	HW
927.080.11	8019296002812	1	28.58	12.7	8	44.5	8	2	RH (right-hand rotation)	HW
927.095.11	8019296002829	1	31.75	15.9	9.5	47.6	8	2	RH (right-hand rotation)	HW
927.595.11	8019296002836	1	31.75	15.9	9.5	54	12	2	RH (right-hand rotation)	HW
927.627.11	8019296002843	1	38.1	19	12.7	57.1	12	2	RH (right-hand rotation)	HW
927.660.11	8019296002850	1	44.45	22.2	15.9	60.3	12	2	RH (right-hand rotation)	HW
927.690.11	8019296002867	1	50.8	25.4	19.1	63.5	12	2	RH (right-hand rotation)	HW
927.722.11	8019296002874	1	57.15	28.5	22.2	66.6	12	2	RH (right-hand rotation)	HW
927.754.11	8019296002881	1	63.5	33.3	25.4	71.4	12	2	RH (right-hand rotation)	HW

Artikelnummer	EAN	Packmenge	Durchmesser (mm)	Arbeitslänge (mm)	Radius (mm)	Gesamtlänge (mm)	Schaftausführung	Zähne / Schneiden	Drehrichtung	Schneidstoff
727.040.11	8019296002737	1	19	12	4	43.8	6	2	RH (Rechtslauf)	HW
727.050.11	8019296002744	1	21	12	5	43.8	6	2	RH (Rechtslauf)	HW
727.060.11	8019296002751	1	23	12	6	43.8	6	2	RH (Rechtslauf)	HW
727.080.11	8019296002768	1	28.58	12.7	8	44.5	6	2	RH (Rechtslauf)	HW
727.095.11	8019296002775	1	31.75	15.9	9.5	47.6	6	2	RH (Rechtslauf)	HW
827.050.11	664252003853	1	21	12	5	43.8	6.35	2	RH (Rechtslauf)	HW
827.060.11	664252003860	1	23	12	6	43.8	6.35	2	RH (Rechtslauf)	HW
827.095.11	664252003877	1	31.75	15.9	9.5	47.6	6.35	2	RH (Rechtslauf)	HW
827.127.11	664252003884	1	38.1	19	12.7	50.8	6.35	2	RH (Rechtslauf)	HW
827.560.11	664252003891	1	23	12	6	50.1	12.7	2	RH (Rechtslauf)	HW
827.595.11	664252003907	1	31.75	15.9	9.5	54	12.7	2	RH (Rechtslauf)	HW
827.627.11	664252003914	1	38.1	19	12.7	57.1	12.7	2	RH (Rechtslauf)	HW
827.660.11	664252003921	1	44.45	22.2	15.9	60.3	12.7	2	RH (Rechtslauf)	HW
827.690.11	664252003938	1	50.8	25.4	19.1	63.5	12.7	2	RH (Rechtslauf)	HW
827.722.11	664252003945	1	57.15	28.5	22.2	66.6	12.7	2	RH (Rechtslauf)	HW
827.754.11	664252003952	1	63.5	33.3	25.4	71.4	12.7	2	RH (Rechtslauf)	HW
927.040.11	8019296002782	1	19	12	4	43.8	8	2	RH (Rechtslauf)	HW
927.050.11	8019296002799	1	21	12	5	43.8	8	2	RH (Rechtslauf)	HW
927.060.11	8019296002805	1	23	12	6	43.8	8	2	RH (Rechtslauf)	HW
927.080.11	8019296002812	1	28.58	12.7	8	44.5	8	2	RH (Rechtslauf)	HW
927.095.11	8019296002829	1	31.75	15.9	9.5	47.6	8	2	RH (Rechtslauf)	HW
927.595.11	8019296002836	1	31.75	15.9	9.5	54	12	2	RH (Rechtslauf)	HW
927.627.11	8019296002843	1	38.1	19	12.7	57.1	12	2	RH (Rechtslauf)	HW
927.660.11	8019296002850	1	44.45	22.2	15.9	60.3	12	2	RH (Rechtslauf)	HW
927.690.11	8019296002867	1	50.8	25.4	19.1	63.5	12	2	RH (Rechtslauf)	HW
927.722.11	8019296002874	1	57.15	28.5	22.2	66.6	12	2	RH (Rechtslauf)	HW
927.754.11	8019296002881	1	63.5	33.3	25.4	71.4	12	2	RH (Rechtslauf)	HW

Beschikbaarheid en levertijd op aanvraag

Levering in België: EUR 8 excl. btw; gratis vanaf EUR 175 aan artikelen incl. btw. Andere bestemmingen bekijken

Stel een vraag over dit product

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden

Specificaties

Uitvoering (CMT)	D 19 \| d 19 \| I 12 \| R 4 \| L 44 \| S 6 \| Art. 727.040.11, D 21 \| d 21 \| I 12 \| R 5 \| L 44 \| S 6 \| Art. 727.050.11, D 23 \| d 23 \| I 12 \| R 6 \| L 44 \| S 6 \| Art. 727.060.11, D 28,6 \| d 28.6 \| I 12,7 \| R 8 \| L 44,5 \| S 6 \| Art. 727.080.11, D 31,7 \| d 31.7 \| I 15,87 \| R 9,5 \| L 48 \| S 6 \| Art. 727.095.11, D 21 \| d 21 \| I 12 \| R 5 \| L 44 \| S 1/4 \| Art. 827.050.11, D 23 \| d 23 \| I 12 \| R 6 \| L 44 \| S 1/4 \| Art. 827.060.11, D 31,7 \| d 31.7 \| I 15,87 \| R 9,5 \| L 48 \| S 1/4 \| Art. 827.095.11, D 38,1 \| d 38.1 \| I 19 \| R 12,7 \| L 51 \| S 1/4 \| Art. 827.127.11, D 23 \| d 23 \| I 12 \| R 6 \| L 50 \| S 1/2 \| Art. 827.560.11, D 31,7 \| d 31.7 \| I 15,87 \| R 9,5 \| L 54 \| S 1/2 \| Art. 827.595.11, D 38,1 \| d 38.1 \| I 19 \| R 12,7 \| L 57 \| S 1/2 \| Art. 827.627.11, D 44,5 \| d 44.5 \| I 22,2 \| R 16 \| L 60 \| S 1/2 \| Art. 827.660.11, D 50,8 \| d 50.8 \| I 25,4 \| R 19 \| L 63,5 \| S 1/2 \| Art. 827.690.11, D 57,1 \| d 57.1 \| I 28,5 \| R 22,2 \| L 67 \| S 1/2 \| Art. 827.722.11, D 63,5 \| d 63.5 \| I 33,3 \| R 25,4 \| L 71 \| S 1/2 \| Art. 827.754.11, D 19 \| d 19 \| I 12 \| R 4 \| L 44 \| S 8 \| Art. 927.040.11, D 21 \| d 21 \| I 12 \| R 5 \| L 44 \| S 8 \| Art. 927.050.11, D 23 \| d 23 \| I 12 \| R 6 \| L 44 \| S 8 \| Art. 927.060.11, D 28,6 \| d 28.6 \| I 12,7 \| R 8 \| L 44,5 \| S 8 \| Art. 927.080.11, D 31,7 \| d 31.7 \| I 15,87 \| R 9,5 \| L 48 \| S 8 \| Art. 927.095.11, D 31,7 \| d 31.7 \| I 15,87 \| R 9,5 \| L 54 \| S 12 \| Art. 927.595.11, D 38,1 \| d 38.1 \| I 19 \| R 12,7 \| L 57 \| S 12 \| Art. 927.627.11, D 44,5 \| d 44.5 \| I 22,2 \| R 16 \| L 60 \| S 12 \| Art. 927.660.11, D 50,8 \| d 50.8 \| I 25,4 \| R 19 \| L 63,5 \| S 12 \| Art. 927.690.11, D 57,1 \| d 57.1 \| I 28,5 \| R 22,2 \| L 67 \| S 12 \| Art. 927.722.11, D 63,5 \| d 63.5 \| I 33,3 \| R 25,4 \| L 71 \| S 12 \| Art. 927.754.11
D (diameter) in mm (CMT)	19, 21, 23, 28.58, 31.75, 38.1, 44.45, 50.8, 57.15, 63.5
R (radius) in mm (CMT)	12.7, 15.9, 19.1, 22.2, 25.4, 4, 5, 6, 8, 9.5
Schachtuitvoering (CMT)	12, 12.7, 6, 6.35, 8
L (totale lengte) in mm (CMT)	43.8, 44.5, 47.6, 50.1, 50.8, 54, 57.1, 60.3, 63.5, 66.6, 71.4
Werklengte in mm (CMT)	12, 12.7, 15.9, 19, 22.2, 25.4, 28.5, 33.3
Merk	CMT Orange Tools
Draairichting (CMT)	RH (Rechtsdraaiend)
Z (aantal tanden / snijkanten) (CMT)	2
Snijmateriaal (CMT)	HW
